Installation tools for CLAVSERT Key-locking Inserts

At AMECA, we offer a complete range of installation and disassembly tools. Our installation tools are available in manual or semi-automatic versions.

Semi-automatic installation tools are available on request.

Manual installation tools

Our manual installation tools for CLAVSERT® inserts enable fast, precise and secure installation. Each tool is designed with specific notches to accommodate the insert keys, ensuring effective positioning and mechanical locking.

  • NAS/NAS type
  • Industrial type
/ Manual installation tools /

Our models

Type NAS/NAS
Type NAS/NAS
Industrial type
Industrial type

CLAVSERT Installation Guide

1.
Drill a hole with a standard drill bit. Chamfer with a standard countersink of 82°–100° (90° for miniature inserts). NOTE: The diameter of the drill is oversized, see the tables for the appropriate dimensions.
2.
Tap with a standard tap. NOTE: Refer to the tables for the appropriate dimensions and depth.
3.
Screw the CLAVSERT into its housing until the keys lock on contact with the chamfer.
insertions des clavettes en frappant sur l'outil d'installation manuel
4.
Seat the keys by tapping on the appropriate installation tool. The CLAVSERT is correctly installed.

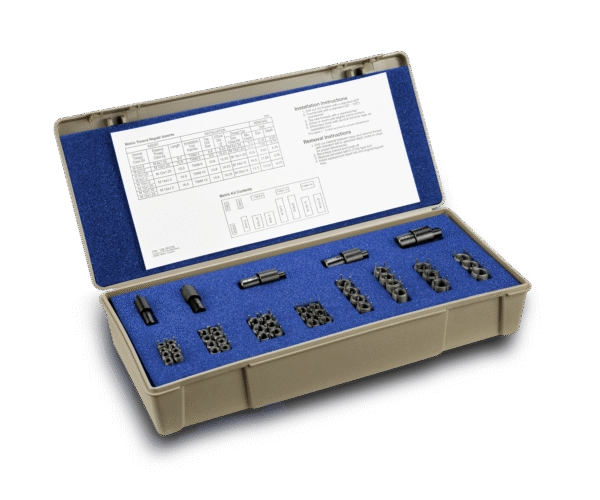

Repair kit

To repair damaged threads, CLAVSERTs are available as repair kits. Each kit contains a selection of CLAVSERTs in various sizes and the appropriate installation tools. Instructions for assembly and disassembly are also included.

/ Documentation /

Download the CLAVSERT Key-locking Insert catalogue

All the information you need to learn more about assembly and installation tools for CLAVSERT.

Download
Installation system for CLAVSERT Key-locking Insert
